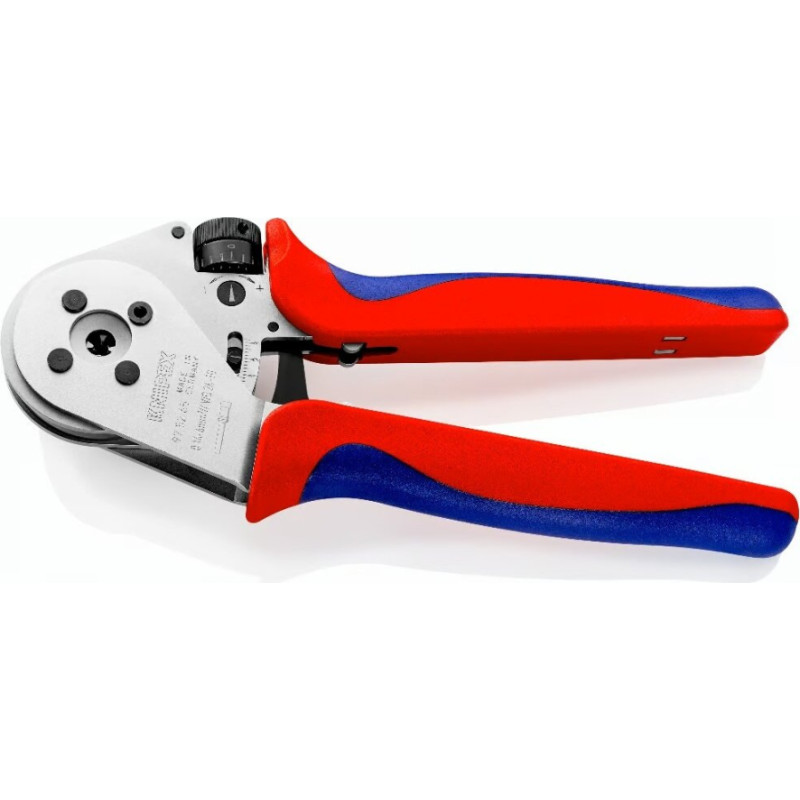

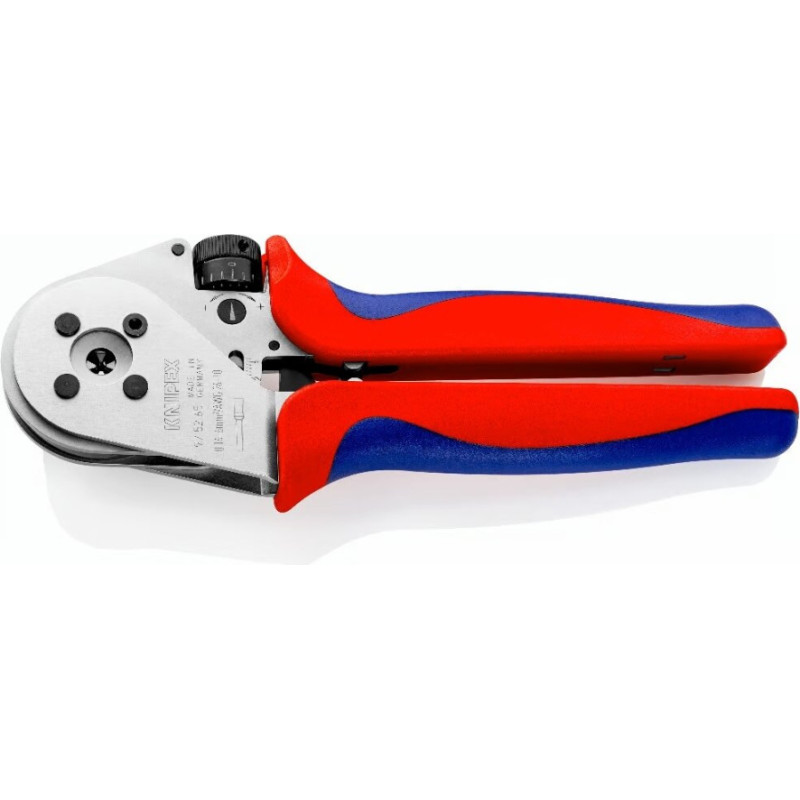

Four pinces crimping pliers KNIPEX

Article No:. 97 52 65
EAN: 4003773045236

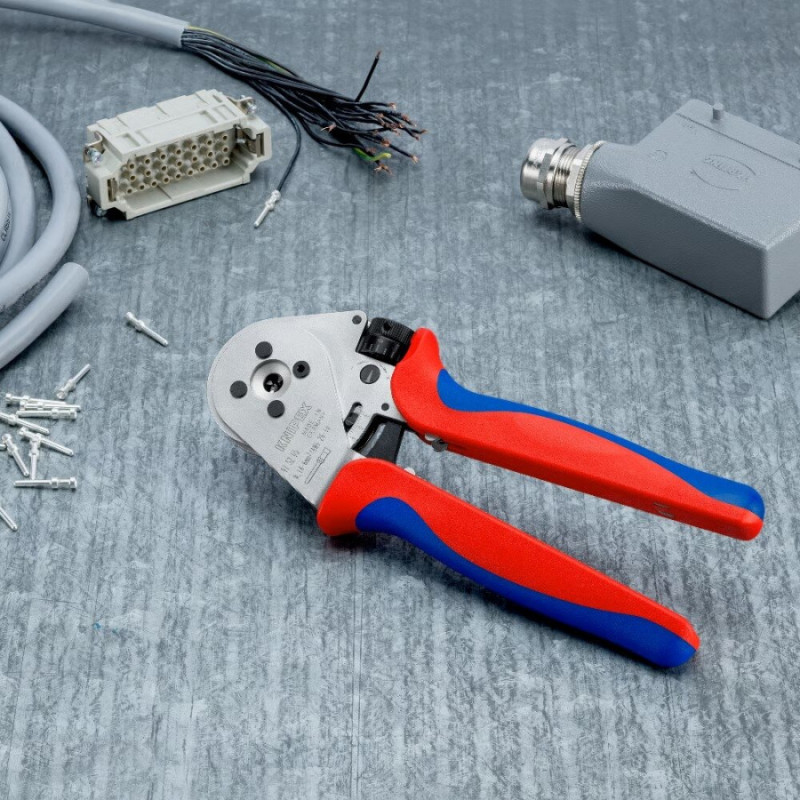

With mounted contact holder for crimping turned pin and socket contacts from Harting, Phoenix Contact, TE Connectivity, Ilme, Amphenol®, Walther and Weidmüller
Crimp mandrel feed adjustable in steps of 0.01 mm using the adjusting wheel
Reliable crimping thanks to synchronised feed of the crimping mandrels
Process-secure and consistently high crimp quality thanks to IEC 60352-compliant trigger lock (positive lock, can be unlocked)

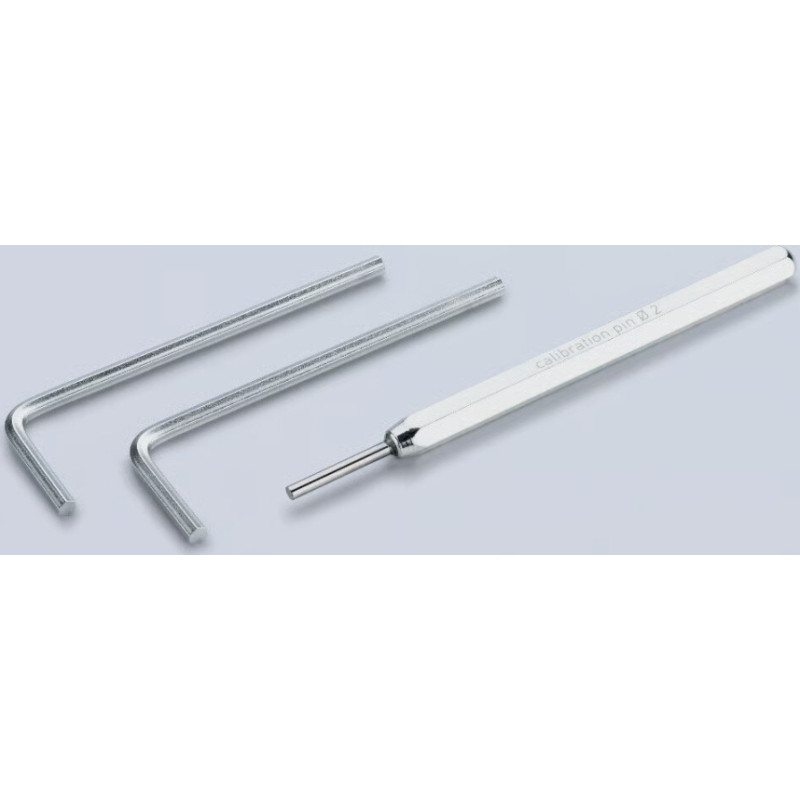

Checking of default setting with enclosed test gauge
The range of applications of the crimping pliers can be extended by exchanging the contact holders of various contact manufacturers

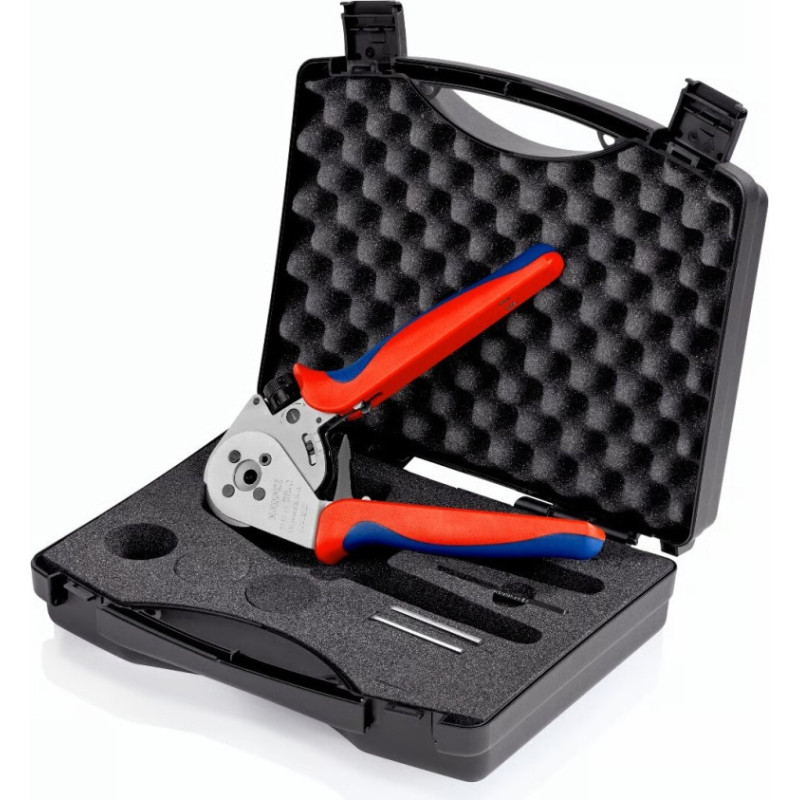

Pliers in plastic case with foam tray and mounted (exchangeable) contact holder

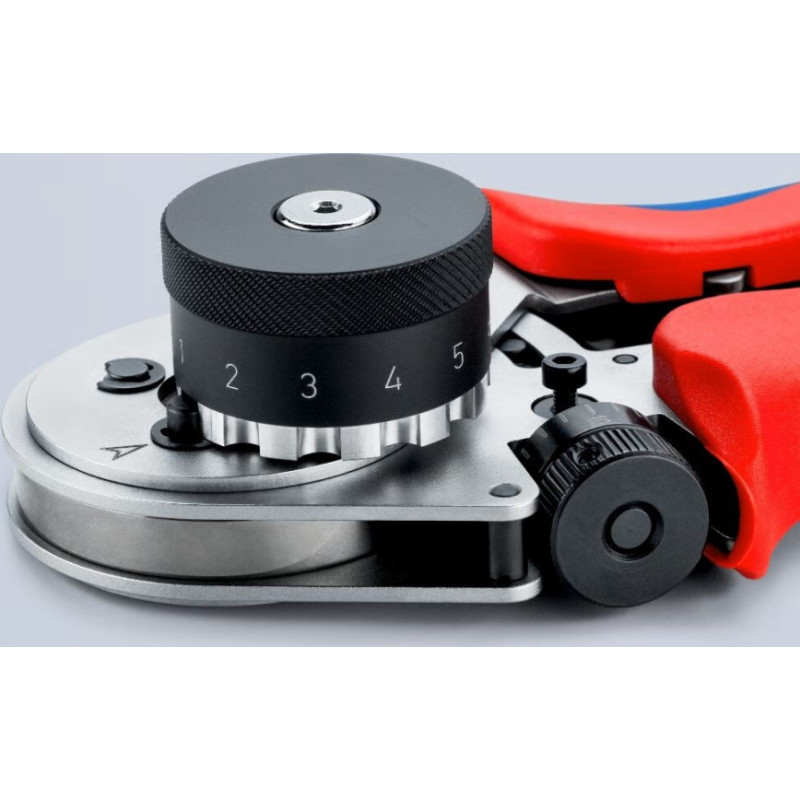

Fine adjustment of pressure depending on the conductor's diameter by means of adjusting wheel
Locator for positioning the contacts
With table for calculating the settings
Pliers in a plastic case with foam insert
AWG 26 — 10
Capacity in square milimeters 0.14 — 6 mm²
Number of crimp profiles 1
Max. contact diameter 7.5 mm
Dimensions 230 x 79 x 42 mm
Weight 676 g
